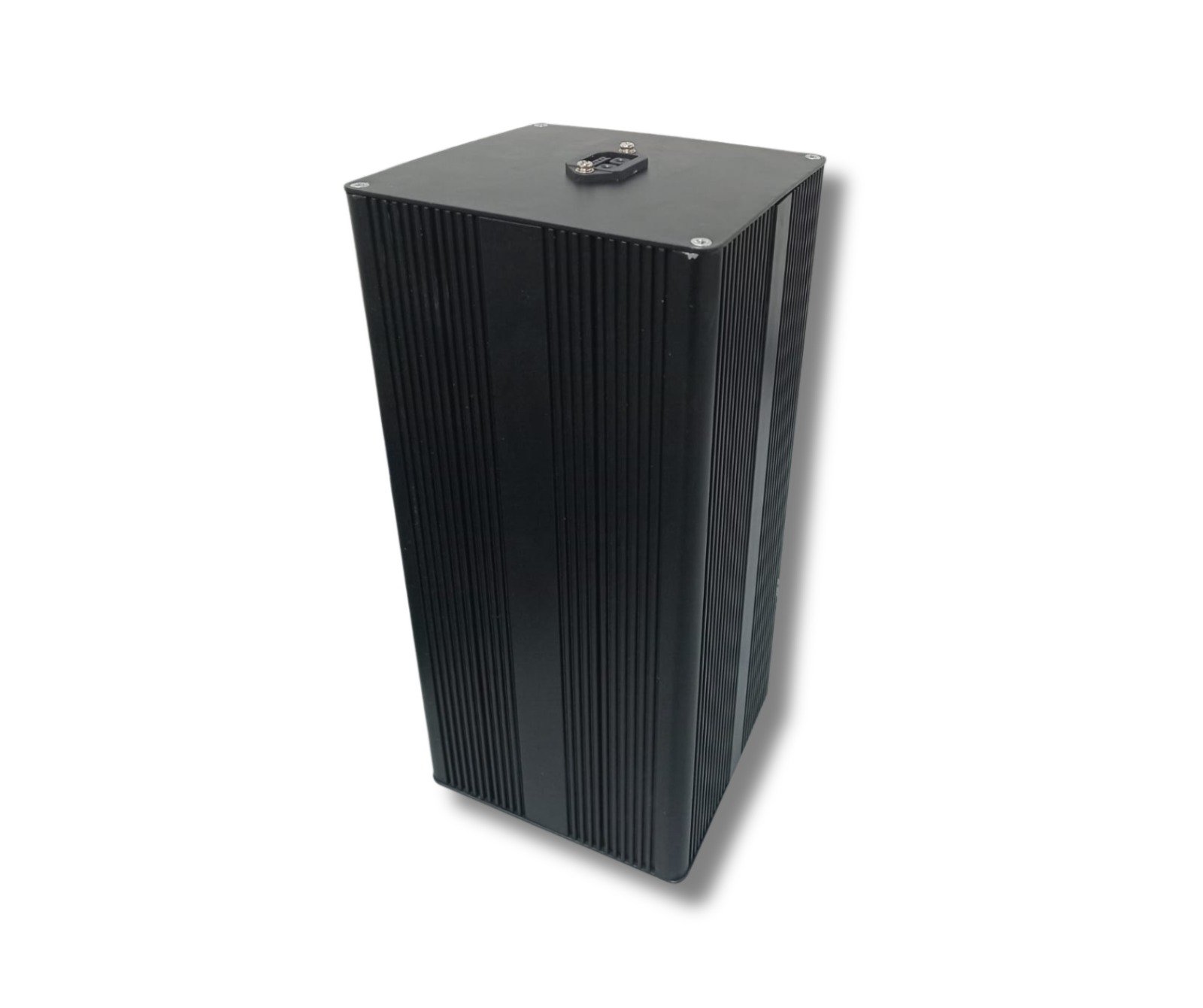

EV Champ 60 V
0 (0 reviews)
Technical Overview
60.8V, 27Ah (≈1.65 kWh) | 19S1P | 1C/3C peak | Smart BMS (BT)
PKR 67,000.00
In Stock
Quantity
Max: 200
The Voltrix 60V 27Ah LiFePO₄ battery is designed for electric bikes and motorcycles, delivering stable performance, long cycle life, and enhanced safety. Equipped with a Smart BMS with Bluetooth, it ensures reliable power delivery and comprehensive protection for daily EV use.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Voltrix |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Application | Electric Bike / Motorcycle |
| Configuration | 19S1P |
| Nominal Voltage | 60.8 V |
| Nominal Energy | ≈ 1.65 kWh |
| Operating Voltage Range | 51.3 V – 70 V |
| Maximum Charge Voltage | 69.35 V |
| Continuous Charge Rate | 1 C |
| Maximum Charge Rate | 1 C (27 A) |
| Continuous Discharge Rate | 1 C (27 A) |
| Recommended Charge Rate | 0.2 C |
| Peak Discharge Rate | Up to 3 C (81 A) |
| BMS | Smart BMS with Bluetooth |
| Protection Features | OV, UV, OC, SC, OT, UT |
| Operating Temperature | −10 °C to +55 °C |
| Cycle Life | ≥ 2500-3000 Cycles @ 80% DOD |
| Standards Compliance | IEC 62619, IEC 62133-2, UN 38.3, UN 3480/3481 |
| Warranty | 2 Years (Cells & Parts Replacement) |
| Rated Capacity | 27 Ah |
