EV Champ 72 V
0 (0 reviews)
Technical Overview
72V 27Ah LiFePO₄ EV Battery | 2.0 kWh | 1C/3C | Smart BMS (BT)
PKR 78,000.00
In Stock
Quantity
Max: 200

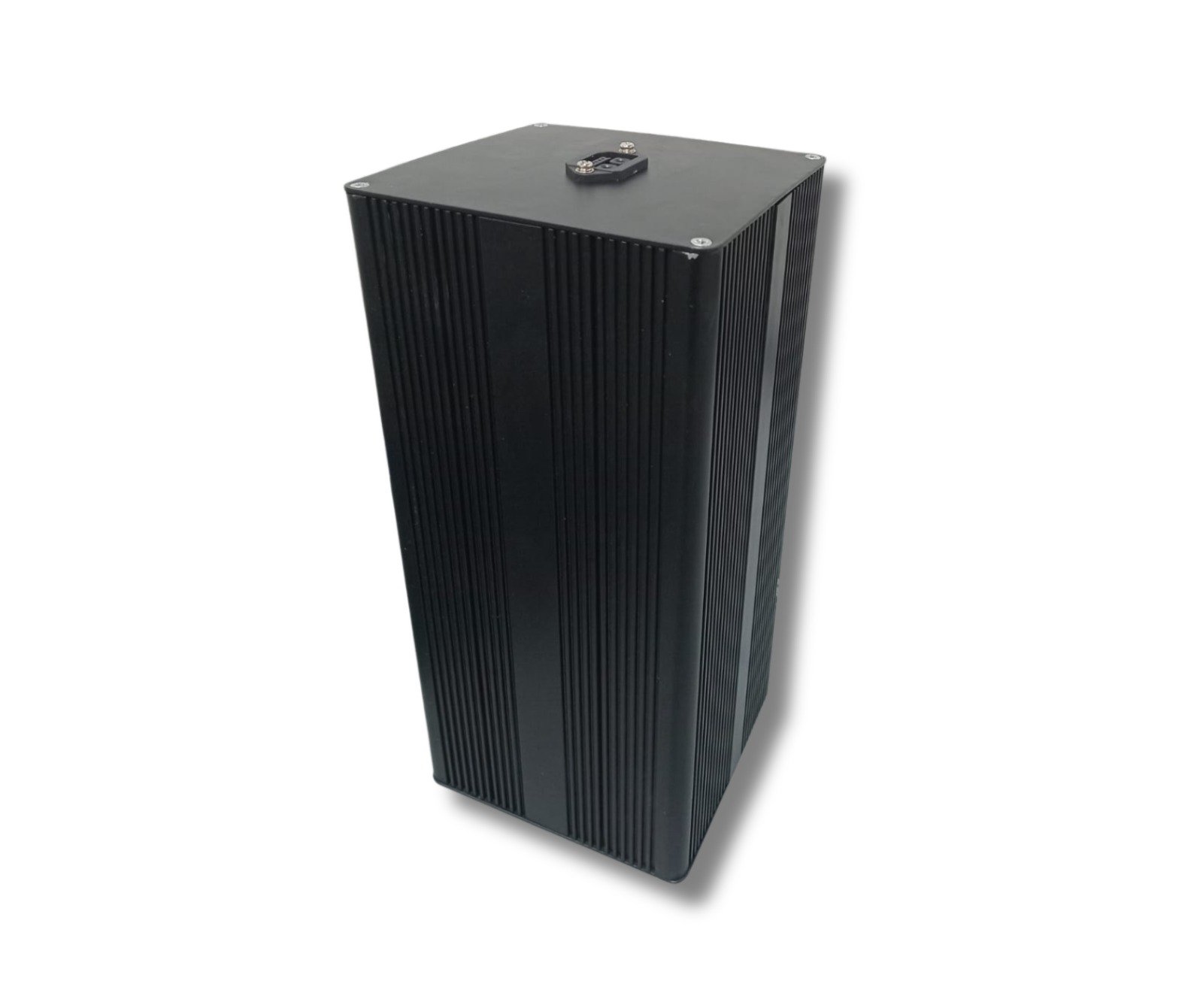

The Voltrix EV Champ 72V LiFePO₄ Battery is a high-performance energy storage solution engineered for electric bikes and motorcycles. Built using premium Lithium Iron Phosphate (LiFePO₄) cells and an advanced Smart BMS with Bluetooth, the battery delivers excellent safety, long cycle life, and consistent power output for daily and commercial EV applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Voltrix |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Application | Electric Bike / Motorcycle |
| Configuration | 23S1P |
| Nominal Voltage | 73.6 V |
| Rated Capacity | 27 Ah |
| Nominal Energy | ≈ 2 kWh |
| Operating Voltage Range | 62 V – 84 V |
| Maximum Charge Voltage | 84 V |
| Continuous Charge Rate | 1 C |
| Maximum Charge Rate | 1 C (27 A) |
| Recommended Charge Rate | 0.2 C |
| Continuous Discharge Rate | 1 C (27 A) |
| Peak Discharge Rate | Up to 3 C (81 A) |
| BMS | Smart BMS with Bluetooth |
| Protection Features | OV, UV, OC, SC, OT, UT |
| Operating Temperature | −10 °C to +55 °C |
| Cycle Life | ≥ 2500-3000 Cycles @ 80% DOD |
| Standards Compliance | IEC 62619, IEC 62133-2, UN 38.3, UN 3480/3481 |
